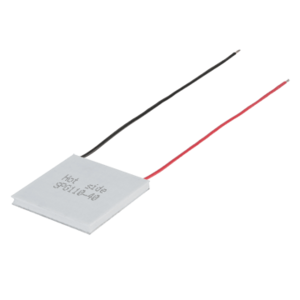

SPG110-40
40 x 40 x 3.83mm, 11 W Output, ワイヤーリード, Thermoelectric Generator (TEG)
The SPG110-40 is a thermoelectric generator (TEG) module outputting 11.0 W of power in a 40 x 40 x 3.83 mm package. This TEG module is silicone sealed and supports continuous maximum hot side temperatures up to 300°C.
特長
| Up to 300 °C continuous maximum hot side temp |
| Silicone sealed |
| Graphite pad option available |
仕様
All specifications measured under conditions (Th = 300°C / Tc = 30°C)
| タイプ | 説明 | |
|---|---|---|
| Open Circuit Voltage (Vdc) | 12.6 |
|
| Matched Load Resistance (ohms) | 3.6 |
|
| Matched Load Output Voltage (V) | 6.3 |
|
| Matched Load Output Current (A) | 1.75 |
|
| Matched Load Output Power (W) | 11 |
|
| Heat Flow Across Module (W) | 192 |
|
| Heat Flow Density (W/cm²) | 12 |
|
| AC Resistance (@27 °C /1000 Hz) (ohms) | 1.4～2.0 |
|
| 外形寸法 LxWxH （mm） | 40 x 40 x 3.83 |
|
| 外形寸法LxWxH（インチ） | 1.58 x 1.58 x 0.15 |
|
