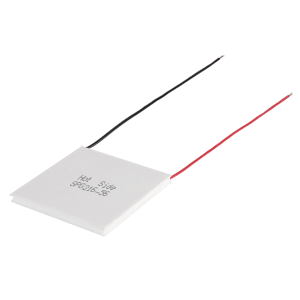

SPG216-56
56 x 56 x 4.5mm, 21.6 W Output, ワイヤーリード, Thermoelectric Generator (TEG)
The SPG216-56 is a thermoelectric generator (TEG) module outputting 21.6 W of power in a 56 x 56 x 4.5 mm package. This TEG module is silicone sealed and supports continuous maximum hot side temperatures up to 300°C.
特長
| Up to 300 °C continuous maximum hot side temp |
| Silicone sealed |
| Graphite pad option available |
仕様
All specifications measured under conditions (Th = 300°C / Tc = 30°C)
| タイプ | 説明 | |
|---|---|---|
| Open Circuit Voltage (Vdc) | 14.4 |
|
| Matched Load Resistance (ohms) | 2.4 |
|
| Matched Load Output Voltage (V) | 7.2 |
|
| Matched Load Output Current (A) | 3 |
|
| Matched Load Output Power (W) | 21.6 |
|
| Heat Flow Across Module (W) | 365 |
|
| Heat Flow Density (W/cm²) | 13.2 |
|
| AC Resistance (@27 °C /1000 Hz) (ohms) | 1.1～1.5 |
|
| 外形寸法 LxWxH （mm） | 56 x 56 x 4.5 |
|
| 外形寸法LxWxH（インチ） | 2.21 x 2.21 x 0.18 |
|
